Concrete construction is the very foundation of modern building practices, offering unparalleled strength, durability, and versatility. Among the various construction methods used for concrete, precast and tilt-up construction have gained prominence due to their unique advantages and applications.

This post examines precast and tilt-up construction characteristics, comparing their capabilities to determine which approach facilitates the casting of larger concrete elements. It will thereby guide you in making informed decisions for your next project.

Understanding Precast Construction

Precast concrete casts elements in a controlled factory environment before transporting them to the construction site. This method ensures high precision and quality control, reduced on-site labor, and potential weather-related delays.

Advantages of Precast Construction

1. Quality Control: Precast elements are manufactured in a factory setting, which allows for stringent quality control measures and reduces the likelihood of defects. The controlled environment also ensures consistent mixing, curing, and finishing processes.
2. Efficiency: Precast components can be produced simultaneously while site preparation is underway, significantly speeding up the project timeline. This parallel processing reduces construction time and enhances project efficiency.
3. Durability: Precast elements often incorporate superior materials and curing processes, resulting in enhanced durability and longevity of the finished structure. The factory setting allows for optimized curing conditions that are difficult to replicate on-site.

Limitations of Precast Construction

1. Transportation Challenges: Large precast elements require specialized transportation, adding logistical complexities and costs. Their size and weight necessitate careful planning and coordination to ensure safe and efficient transport.

2. Joint Issues: Connecting multiple precast pieces on-site may lead to potential weak points or alignment issues. The need for precise fitting and joining can complicate the installation process and affect structural integrity.

Understanding Tilt-Up Construction

Tilt-up construction involves casting concrete panels horizontally on the job site and then lifting them into their vertical positions using cranes. This technique is prevalent for large, single-story commercial buildings such as warehouses and retail centers.

Advantages of Tilt-Up Construction

1. On-Site Casting: Tilt-up construction avoids the transportation challenges associated with precast construction since panels are cast directly at the job site. This eliminates the need for specialized transport and reduces logistical complications.
2. Cost-Effective: Generally, tilt-up construction requires fewer resources for transportation and handling, potentially reducing overall project costs. The on-site casting process can also reduce labor expenses and material waste.
3. Large Panel Sizes: Tilt-up construction allows for larger panels to be cast on-site without the limitations imposed by transportation logistics. This capability suits buildings with expansive footprints and minimal jointing requirements.

Limitations of Tilt-Up Construction

1. Weather Dependency: Casting on-site makes the process vulnerable to weather conditions, which can delay or complicate construction. Adverse weather can affect the curing process and the overall quality of the panels.

2. Crane Requirements: Lifting large panels requires heavy-duty cranes, which increases equipment needs and associated costs. Crane availability and capacity can impact project timelines and budgets.

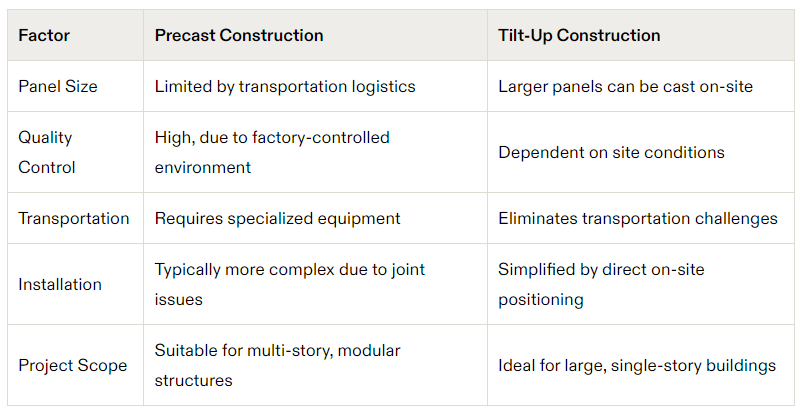

Comparing Precast and Tilt-Up Construction

Specific aspects such as panel size, transportation, installation, and overall project scope must be examined to determine which method allows for larger casts.

Panel Size

Tilt-up construction generally allows for larger panels since they are cast directly on the site without transportation. This advantage makes tilt-up construction particularly suitable for vast, open spaces like warehouses and retail centers, where minimizing the number of joints and maximizing panel size is crucial.

Quality Control

While both methods strive for high-quality outcomes, precast construction benefits from the controlled environment of a factory setting, ensuring consistent results. The factory conditions allow precise control over the mixing, casting, and curing processes. In contrast, tilt-up construction’s quality can vary more due to dependency on site conditions and the skill of the on-site team.

Transportation

Transportation is a significant factor when considering the maximum size of precast panels. Specialized transport vehicles and routes must be meticulously planned to accommodate oversized loads, adding complexity and cost to the project. On the other hand, tilt-up construction avoids these complications altogether, as panels are cast and erected on-site.

Installation

The installation process for precast panels can be more labor-intensive due to the need for precise alignment and securing of joints between elements. This complexity can impact the overall project timeline and costs. Tilt-up construction simplifies this process, as panels are positioned directly without requiring extensive fitting and joining, streamlining the erection phase.

Project Scope

Precast construction is often favored for multi-story buildings and complex modular designs due to its precision and ease of mass production. It suits projects requiring repetitive, uniform components, such as apartment complexes and office buildings. Tilt-up construction, however, excels in large, single-story projects where expansive wall sections can be efficiently erected with minimal jointing, making it ideal for warehouses, factories, and big-box retail stores.

Wrap Up

Tilt-up construction is the clear winner when determining which concrete building type may be cast larger. Its primary advantage lies in its ability to cast and erect large panels directly on-site, bypassing the logistical constraints of transportation. This feature makes it especially suitable for expansive, single-story structures where it is critical to minimize the number of joints and maximize panel size.

Both precast and tilt-up construction methods have unique advantages and are chosen based on specific project requirements. Precast construction offers superior quality control and is ideal for multi-story and modular structures. In contrast, tilt-up construction facilitates casting larger panels on-site, making it optimal for large, open spaces.

By leveraging each method’s strengths, construction professionals can optimize their approach based on project needs, site conditions, and desired outcomes. Whether opting for precast for its precision and consistency or tilt-up for its ability to handle large panels, understanding the intricacies of each method is key to successful concrete construction.
